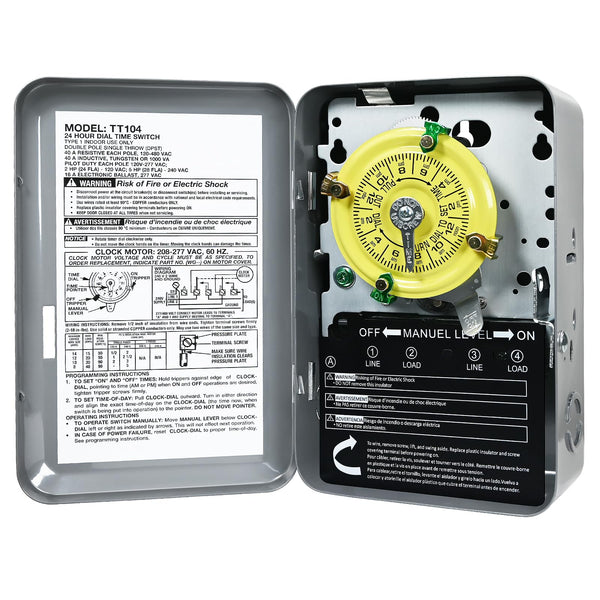

T104 Mechanical Time Switch 208-277 VAC 5HP 40A DPST Manual Override Heavy Duty Electromechanical Timer 24 Hours Up to 12 ON/Off 1-12 Cycles Per Day for Pool Pump Water Heater Outdoor Indoor Lighting

Specifications: The T104 mechanical time switch voltage rating is 208-277 VAC, 60Hz, suitable for 240 volt timer replace and 220 volt timer replace. The time switch can handle elctrical loads up to 40A per pole, providing robust and reliable control for a wide range of applications. Switch Type: DPST(Double Pole Single Throw); Time Interval: 15 minute; Operation temperature: -40-130℉(-40-54℃)24-Hour Control: The T104 mechanical time switch provides up to 12 ON/OFF operations each day with a minimum ON/OFF time of one hour, manual overrideManual Override Switch: The T104 mechanical time switch features a manual override switch, giving users the ability to bypass the programmed schedule when necessary without interrupting ongoing cyclesWide Applications: The T104 mechanical time switch can be applied to control swimming pool pumps, pool heaters, blowers, indoor/outdoor lighting, signs, filters, fans and other electrical loads; It ensures consistent operation without the complexity of digital controlsPackage Included: 1* T104 mechanical time switch; 2* ON trippers; 2* OFF trippers; 1* instruction sheetEasy Installation: The terminals (line, load, neutral, ground) are clearly marked and the instruction sheet has the correct wiring diagram and the timer setting insturctions
